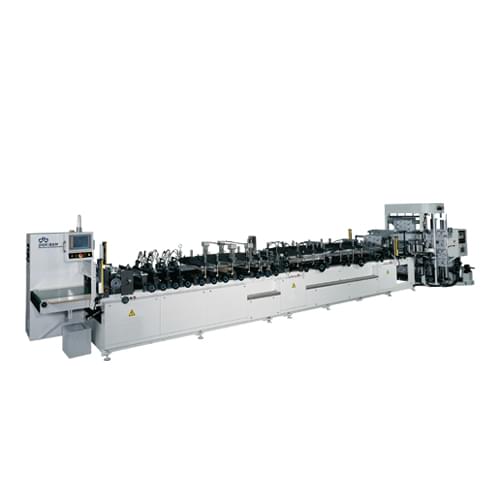

Features
- Sealable laminated film thickness 40-200µ.
- There are four kinds of bags: a 3-side-seal bag, a stand-up pouch, a 3-side-seal bag with a zipper, and a stand-up pouch with a zipper.
- 3-side sealed bags can be made in 3-lane operation within maximum parent-web width.
- Stand-up pouches and zipper bags can be made in 2-lane operation within maximum parent-web width.
- Totaling 4 servo motors to ensure top sealing quality and high production performance.
- LPC to provide edge guiding for accurate sealing and trimming.
- An ultrasonic welder is used to flatten the zipper to enhance the finish look.
- Skip function to produce extra long bags.
- Touch-screen makes operation easier and faster.
- Trim rewinding.
- Constant sealing time to reduce time for quick setup and waste.
Specification
| Model No. | ABM-64SPZ | |
|---|---|---|
| Max. Parent Web Width | 600 ~ 1200 mm | |
| Max. Parent Web Diameter | 800 mm | |
| Max. Bag Width | 600 mm | |
| Max. Machine Speed | 180 Cuts/min. | |
| Bottom Web Width | 60 ~ 120 mm | |
| Max. Bottom Web Diameter | 420 mm | |
| Installation Information (For Standard Specification) |
Net Weight | 4700 kg |
| Area Required | L 12141 x W 5229 x H 1795 (mm) | |
| Power | 380V / 31KW / 65A | |
| Water | 15 – 20 ℃ | |
| Air | 6 kg / cm3 | |
| Various Punching Tools | |||
|---|---|---|---|
| Euro-slot | Curve-slot | Butterfly | Slot |
 |
 |
 |
 |
| Hexagonal | Round | Star | Kidney |
 |
 |
 |
 |
