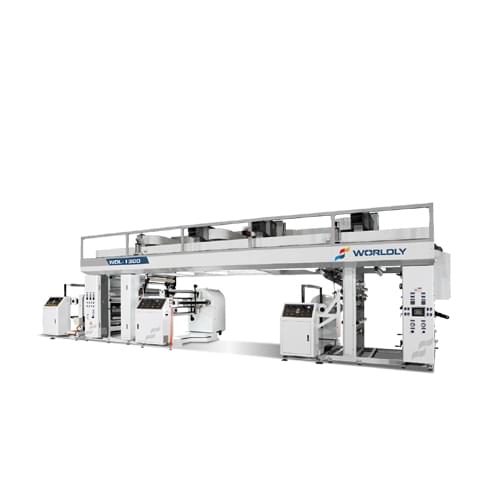

Dry Laminating Machine

In Stock
Estimated Delivery:
15 December - 16 December
23 People viewing this product right now!
100% Genuine Product Trues Badge
Description

Specification

Model WDL
Maximum Machine Speed 200 m/min
Laminating Speed 180 m/min
Laminating Width 800 mm / 1000 mm / 1300 mm
Material Diameter Ø600 mm / Ø800 mm / Ø1000 mm

Feature

In response to the mass demand for various materials and multiple methods in flexible packing markets, WORLDLY WDL series drying laminating machinery is the ultimate solution. With this machine automatic taper tension settings can also be easily adjusted from HMI according to different technology process applications. Internal guiding rollers in the drying tunnel are connected with a belt and driven by a motor. In addition, to ensure smooth and solid firm laminating results. The laminating unit uses three rollers press design. The backup roller provides more even pressure to the nip roller and performs a more uniform bonding effect. With these specific designs on the WDL, provided is increases production and minimizes loss which are essential for flexible packaging.

  • Low wastage-Focus on the compact designed principle, to save the web path to minimize wastage. Thus accomplishing easy operation and space-saving. With minimum waste loss, achieve maximum operation efficiency.

  • The drying tunnel guiding roller is motor-driven and is synchronized with the line speed

  • Coating unit smoothing roller for uniform glue coating over the entire surface

  • Three roller press design on the lamination unit provide rigid and uniform pressure for the highest quality laminations
