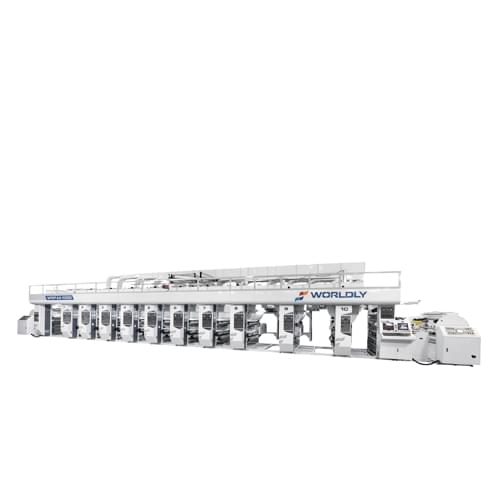

High Speed Rotogravure Printing Machine

In Stock
Estimated Delivery:
15 December - 16 December
22 People viewing this product right now!
100% Genuine Product Trues Badge
Description

To make top-notch printers that are easy to use, Worldly designs machines with automated functions and reliable parts built with special techniques and careful planning. A central computer system, including a programmable logic controller (PLC), touchscreen, and automatic alarms, lets operators easily check print quality. The machine connects paper rolls using vertical and horizontal splicers and pressure rollers for smooth, precise joining. It also has a built-in system to reuse exhaust heat, saving energy and helping the environment.

Ink resistance material of furnishing roller optimized ink circulation, avoid cylinder cell ink stock and improve printing quality. The roller driven by motorized can manual or automatic mode synchronized with printing speed.

Quick change over doctor blade holder design

Doctor blade quick locking by tool-less. The group allows horizontal, vertical and angular adjustment for the doctor blade position on engraved cylinder.

Heating recycling energy-saving

Heating recycling & energy saving: Exclusive energy-saving design to increase the recycling benefit of investment costs. The system is constructed of connection ducts, ventilation modules, hood drying chambers, and a central exhaust system. Recycle waste hot air to save energy consumption.

A centralized control system allows manpower saving

Centralized control system integrated operator HMI, web video monitor, and color registration panel for easy access to working parameters and manpower saving. Automatic longitudinal and side-lay register control system. High flexibility master mark setting. Also able to save various parameter conditions to job memory.

Latest E.L.S technology

All unwinder, in-feed unit, printing units, out-feed unit,, rewinder are individually driven by AC servo motors and drives. The cylinder has direct driven to optimized the transmission with low mechanical loss. Whole machine automation and tension are controlled by a high-performance PLC system.

Specifications

Model WRP-HI
Maximum Machine Speed 270 m/min
Printing Maximum Speed 250 m/min
Printing Width 1000 mm / 1200 mm / 1300 mm
Printing Cylinder 350 mm – 900 mm
Material Diameter Ø800 mm / Ø1000 mm
